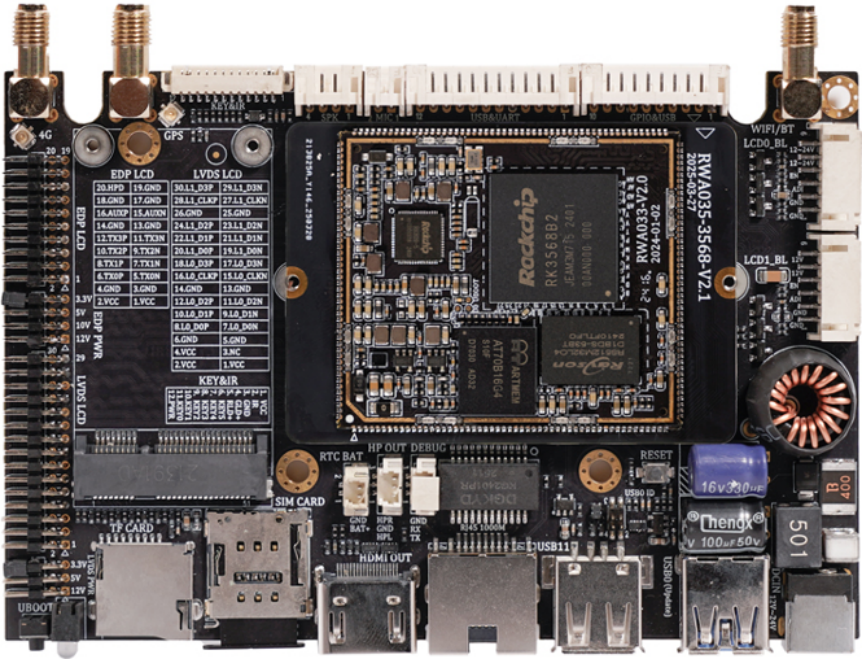

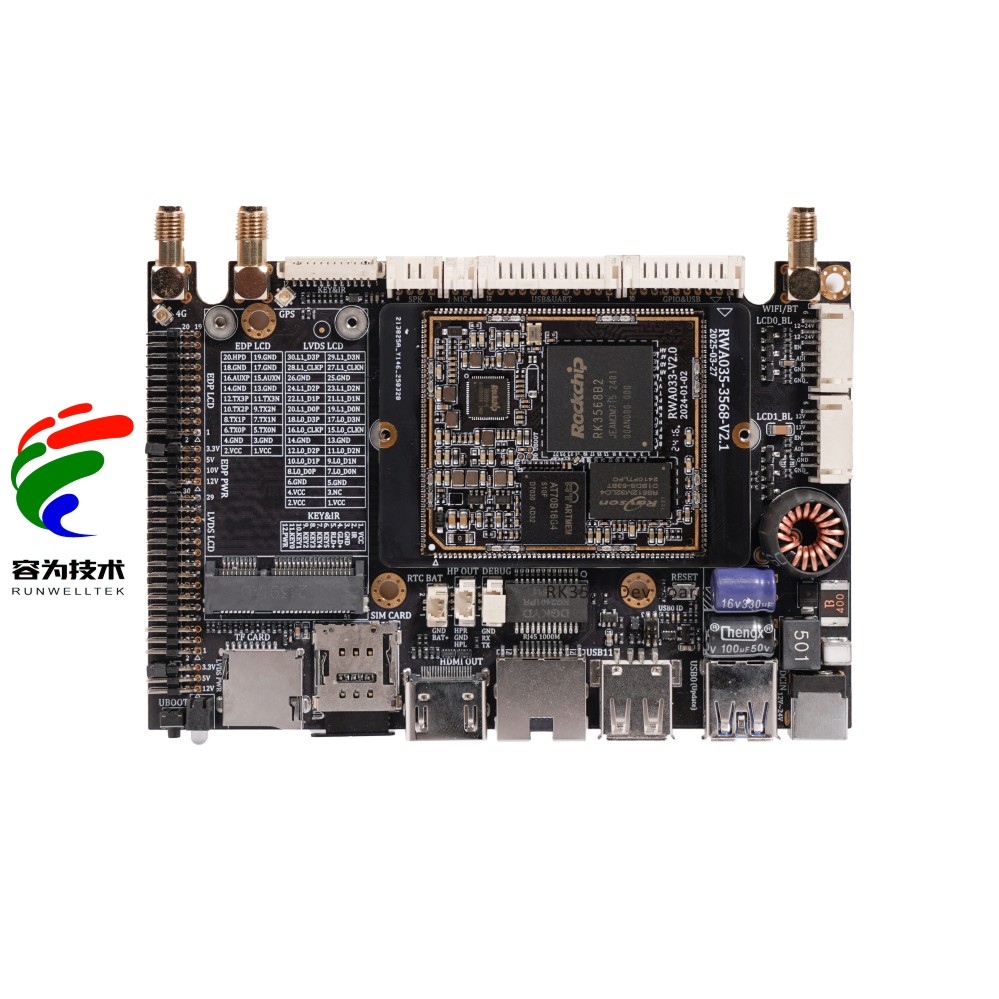

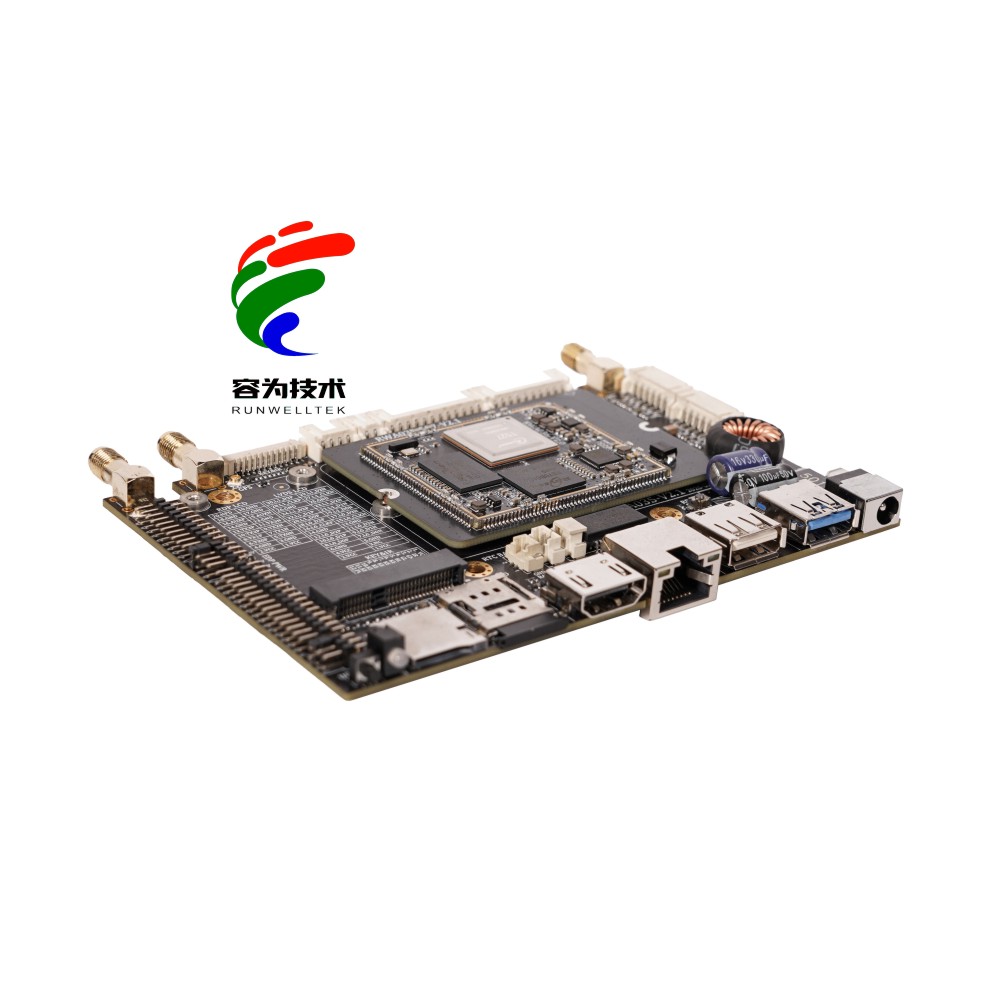

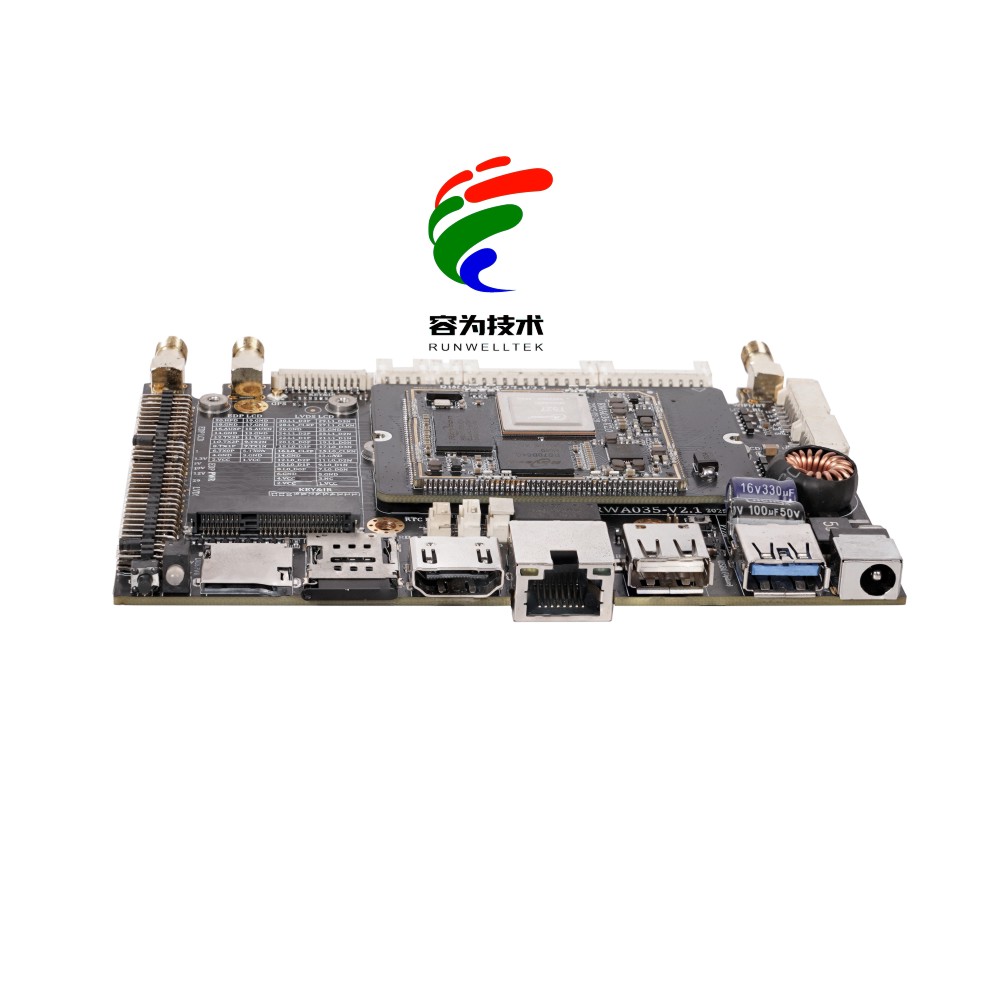

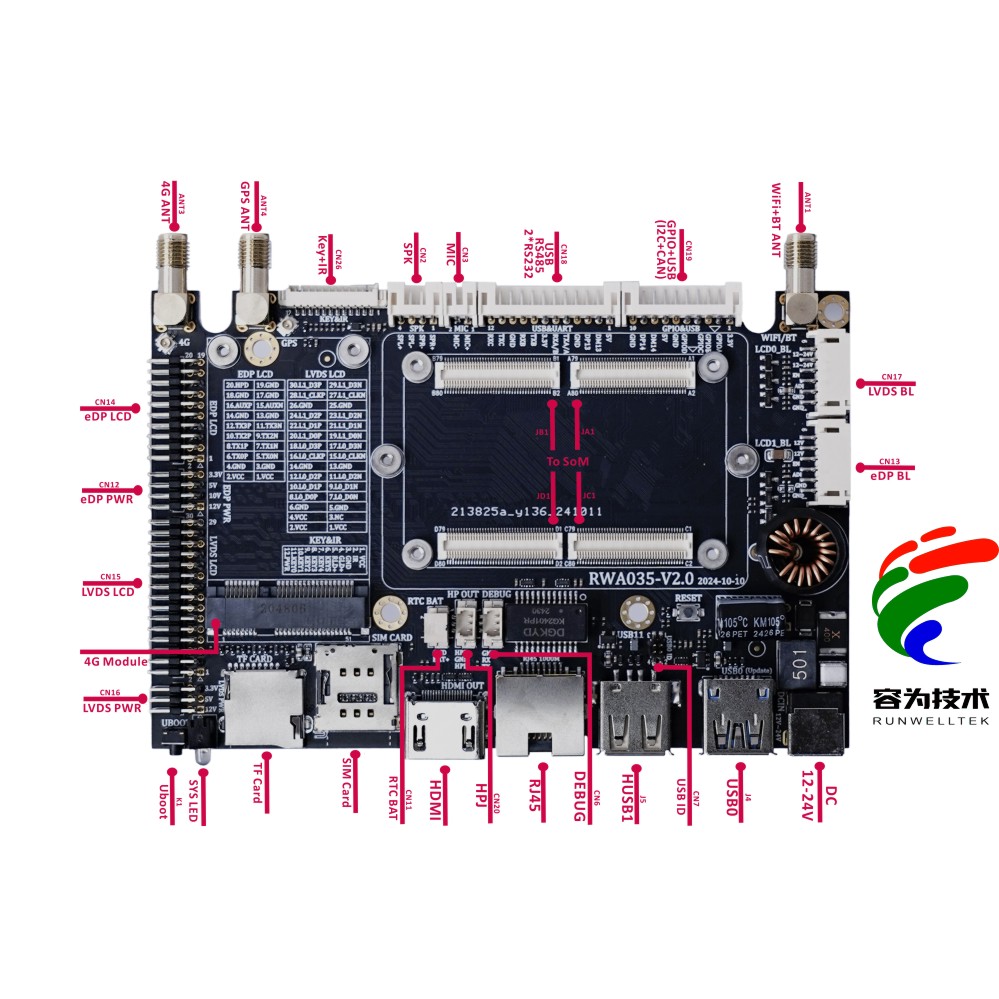

| RWA035-RK3568 Motherboard | |
 | |
| Product Description | |
| CPU | •Rockchip RK3568, Quad cortex A55@2.0GHz |
| •32KB L1-cachle and 32KB L1 D-cache per A55 core | |
| •Optional 64KB L2 cache per LITTLE core | |
| •Single core RISC-V, RV32IMAFC instructions, up to 200MHZ | |
| •16KB I-cache and 16KB D-cache | |
| GPU | •ARM Mali-G52-2EE GPU |
| •Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1 | |
| •Support 1600Mpix/s fill rate when 800MHz clock frequency | |
| •Support 38.4GLOPs when 800MHZ clock frequency | |
| NPU | •1TOPS NPU |
| •Supports INT8/INT16/FP16/BFP16 hybrid operation | |
| •Network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted | |
| ROM | •Support eMMC 5.1 |
| •Support boot from eMMC, 8bit data bus | |
| •Supports from 8GB-32GB, max 128GB | |
| RAM | •1x256*32, LPDDR4X |
| •Default 2GB, 4GB or 8GB optional | |
| Video Decoding | •SupportH.264 and H.265 decoding |
| • H.265 H.264 VP9 HEVC/MVC Main10 Profile yuv420 L5.1 up to 4096x2304 60fps | |
| • VP8 V2.0,MPEG-4 and VC1 up to 1920x1080 60fps | |
| Video Encoding | •Support H.264 AVC/BP/MP/HP level 4.2 1920x1080 100pfps |
| •H.265 HEVC MP level4.1, up to 1920x1080 100fps, 4096x4096 10fps | |
| •H.264 encoding performance of 1080p 60fps | |
| •Support YUV/RGB video source with rotation and mirror | |
| LCD | •Default 7 inch MIPI 1024*600 IPS |
| •Support LVDS LCD with backlight control, 2*15PIN,1920*1080P, 30fps | |
| •Support eDP LCD with backlight control, 2*10PIN,2560x1600 60fps | |
| Touch Panel | •Support USB touch panel |
| •Support I2C COF touch,6PIN FPC 0.5mm pitch | |
| Audio Input and Output | •One micphone input |
| •One headphone jack, L&R | |
| •2*3W speaker | |
| SD/MMC | •Support TF card, SD3.0 |
| •Support 4GB-256GB | |
| •Suppport 8bit data bus | |
| USB | •Total 3xUSB, 1xUSB 3.0 OTG or host, data transmission or update |
| •1xUSB host as type A, it can support kind of USB devices | |
| •2xUSB host on WF2.0 connector | |
| TWI | •2xTWI, one I2C used for touch panel |
| •One I2C share with CAN | |
| •Support standard I2C device | |
| UART | •Support 4xUARTs |
| •One UART for debug | |
| •2xRS232, TTL as optional | |
| •1xRS485, TTL as optional | |
| UBOOT | •Onboard UBOOT key |
| •Used for force upgrade | |
| WIFI+BT | •8723DS WIFI+BT module, 2.4G, 802.11 b/g/n |
| •Bluetooth,V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 | |
| Ethernet | •One RJ45 100M ethernet |
| •On board transformer | |
| PoE | •Supports power by PoE module, 12V,30W |
| •4Pin WF2.0 | |
| 4G Module | •Support PCIe USB 4G module |
| •Default support EC20, CAT1 | |
| Key | •Onboard UBOOT key for force upgrade |
| •Onboard Reset key | |
| •Support one ADC to extend 6key | |
| •Support extended power on/off buttons | |
| PWM | •3xPWM, one for MIPI and LVDS LCD, one for eDP LCD |
| •Support separate backlight control for MIPI, eDP and LVDS screens | |
| Others | •LED indicate for system and power |
| •WIFI+BT antenna connector, IPEX-I | |
| Power | •12-24V, 2A power supply, DC inner hole 2.0mm |
| •WF2.0, 4PIN power supply(same with DC jack) | |
| •RTC battery by WF1.25 connector, CR2032(Default NC) | |
| •Can't support Li-on battery, SoM board support only | |
| OS | •Android 11 GO OS |
| • Kernel Version: 4.19 | |
| • Linux SDK | |
| L*W*H | 130*86*15mm |
