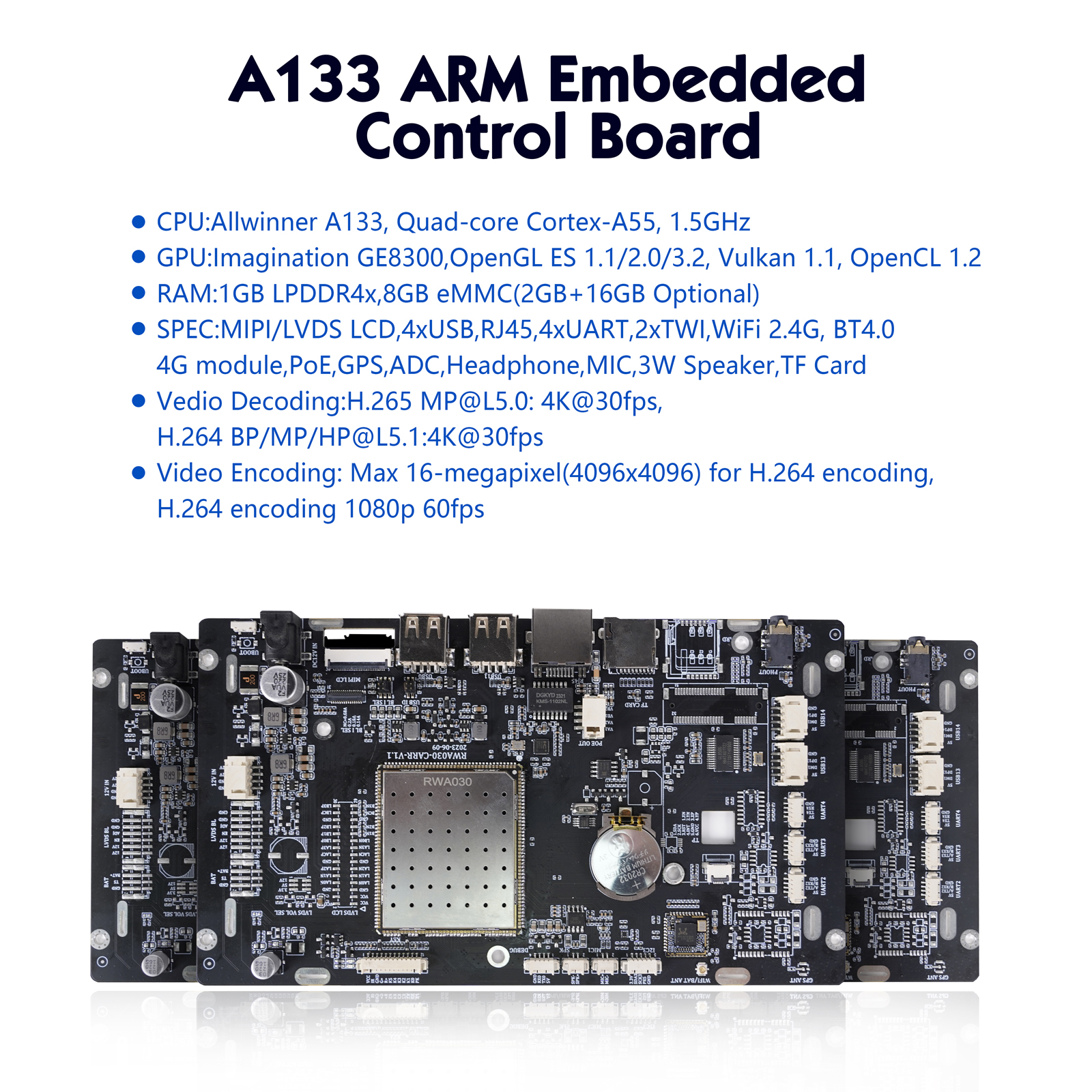

| Product Description | |
| CPU | •Allwinner A133, Quad cortex A53@1.6GHz |
| •32 KB L1 Instruction cache and 32 KB L1 data cache for per CPU,512 KB L2 cache shared | |
| •Power-efficient ARM v8 architecture | |
| GPU | •Imagination GE8300 |
| •Support OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 1.2 | |
| ROM | •Support eMMC 5.1 |
| •Support boot from eMMC, 8bit data bus | |
| •Default 8GB, 16GB-128GB optional | |
| RAM | •1x256*32, LPDDR4 |
| •Default 1GB, 2GB or 4GB optional | |
| Video Decoding | •SupportH.264 and H.265 decoding |
| • H.265, MP Level 5.0, max 4096*2304@30fps | |
| • H.264, BP/MP/HP Level 5.1, max 4096*2304@30fps | |
| Video Encoding | •Support H.264 encoding |
| •Max 16-megapixel 4096*4096 resolution for H.264 encoding | |
| •H.264 encoding performance of 1080p 60fps | |
| •MJPED encoding performance of 1080p 30fps | |
| LCD | •Default 7 inch 1024*600 IPS |
| •Support 8 inch ,10.1 inch,800*1280 MIPI LCD,31Pin, the current backlight can be adjustable by jumper | |
| •Support LVDS LCD,2*15PIN,1920*1080P, 30fps | |
| Touch Panel | •Support USB touch panel |
| •Support I2C COF touch,6PIN FPC 0.5mm pitch | |
| Audio Input and Output | •One microphone input |
| •One headphone jack, L&R | |
| •1*3W speaker | |
| •Buzzer (optional) | |
| SD/MMC | •Support TF card, SD3.0 |
| •Support from 4GB-128GB | |
| •Support 4bit data bus | |
| USB | •Total 4xUSB, 1xUSB OTG, data transmission or ｕｐｄａｔｅ |
| •3xUSB host | |
| GPS | •Onboard ST-26-Z8LR GPS module(Default NC) |
| •BDS/GPS/GLONASS | |
| •Accuracy 2.5 meter, Support AGNSS | |
| TWI | •2xTWI, one used on with touch panel, one used for GPIO |
| •Support standard I2C device | |
| UART | •Support 4xUARTs |
| •UART0 for debug | |
| •UART2, default TTL, RS485 optional | |
| •UART3 and UART4 TTL, RS232 optional | |
| RJ45 | •Support 100M RJ45 |
| •PoE Power Supply, 12V,30W,4Pin WF2.0 | |
| 4G Module | •Support PCIe USB 4G module |
| •Default support EC20, CAT1 | |
| WIFI+BT | •8723DS WIFI+BT module, 2.4G, 802.11 b/g/n |
| •Bluetooth,V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 | |
| Key | •Support 6key from ADC |
| •One Power on/off key | |
| UBOOT | •Onboard UBOOT key |
| •Used for force upgrade | |
| GPIOs | •Support 3xGPIO, It can be setting as input , output or interrupt. I2C3 also design from this port. |
| •3.3V power supply | |
| PWM | •1xPWM |
| •Support LVDS or MIPI backlight | |
| Gyroscope | •Three axis accelerometer(Default NC) |
| •0.125-128 sample/sec | |
| Power | •12V, 2A power supply, DC inner hole 2.0mm |
| •WF2.0, 6PIN power supply(same with DC jack) | |
| •RTC battery, CR2032(Default NC) | |
| •Support Li-on battery. | |
| OS | •Android 10 GO OS |
| • Kernel Version: Linux 4.9 | |
| L*W*H | 186*105*15mm |
