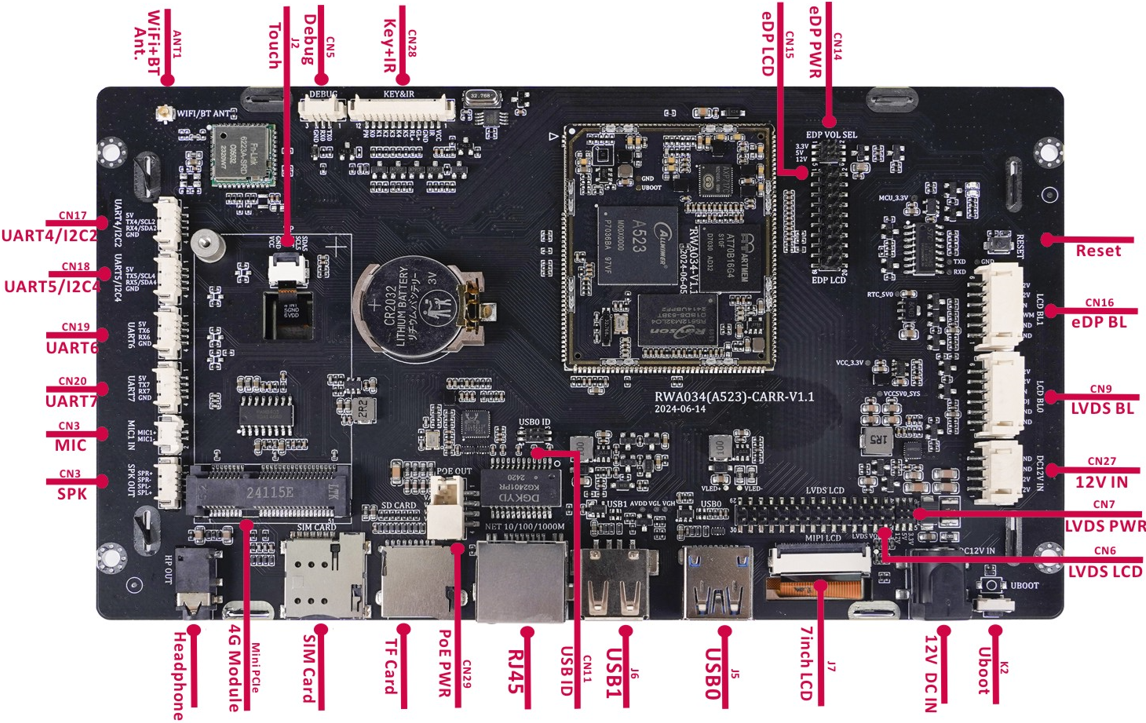

| Product Description | |
| CPU | •Allwinner A523, Octa cortex A53@2.0GHz |
| •32 KB L1cache and 32 KB L1 D-cache for per CPU | |
| •Optional 64KB L2 cache per "LITTLE" core, 128KB L2 cache per "big" core | |
| •Single-core RISC-V, up to 200MHz | |
| •16 KB I-cache and 16 KB D-cache, RV32IMAFC instructions | |
| GPU | •ARM G57 MC1 GPU |
| •Support OpenGL ES 3.2/2.0/1.1, Vulkan 1.1/1.2/1.3, OpenCL 2.2 | |
| •Anti-aliasing algorithm | |
| •High memory bandwidth and low power consumption in 3D graphics processing | |
| ROM | •Support eMMC 5.1 |
| •Support boot from eMMC, 8bit data bus | |
| •Default 16GB, 32GB-128GB optional | |
| RAM | •1x256*32, LPDDR4X |
| •Default 2GB, 4GB or 8GB optional | |
| Video Decoding | •Supports ITU-T H.265 Main/Main 10, level 6.1 |
| •Maximum video resolution:8192x4320, decoding rate:3840x2160 60fps | |
| •Supports VP9 Profile0/Profile2, level 6.1 | |
| •Maximum video resolution:8192x4320, decoding rate:3840x2160 60fps | |
| •Supports ITU-T H.264 Base/Main/High Profile level 4.2 | |
| •Maximum video resolution:3840x2160, maximum decoding rate: 3840x2160 30fps | |
| Video Encoding | •H.264 BP/MP/HP encoding, supports 4K 25fps 8bits |
| •Maximum resolution:4096x4096 (16 megapixels) | |
| •Supports I/P frame type, supports CBR, VBR and FIXEDQP modes | |
| •Supports JPEG baseline encoding, JPEG encoder supports 4K 15fps | |
| •JPEG encoder support YUV420, YUV422 and YUV 444 format | |
| •MJPEG baseline encoding up to 4K 15fps | |
| LCD | •Default 7 inch 1024*600 IPS |
| •Support LVDS LCD,2*15PIN,1920*1080P, 30fps | |
| •Support eDP LCD,2*10PIN,2560x1600 60fps | |
| Touch Panel | •Support USB touch panel |
| •Support I2C COF touch,6PIN FPC 0.5mm pitch | |
| Audio Input and Output | •One micphone input |
| •One headphone jack, L&R | |
| •2*3W speaker | |
| SD/MMC | •Support TF card, SD3.0 |
| •Support 4GB-256GB | |
| •Suppport 8bit data bus | |
| USB | •Total 3xUSB, 1xUSB OTG, data transmission or ｕｐｄａｔｅ |
| •1xUSB host as type A, it can support kind of USB devices | |
| •1xUSB host used for PCIe USB 4G module | |
| TWI | •3xTWI, I2C5 used for touch panel |
| •I2C2 share with UART4, I2C5 share with UART5 | |
| •Support standard I2C device | |
| UART | •Support 4xUARTs |
| •UART0 for debug | |
| •Two UARTs, UART6 and UART7, default TTL | |
| •Two reuse UARTs, UART4 and UART5 TTL | |
| UBOOT | •Onboard UBOOT key |
| •Used for force upgrade | |
| WIFI+BT | •8723DS WIFI+BT module, 2.4G, 802.11 b/g/n |
| •Bluetooth,V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 | |
| Ethernet | •One RJ45 100M ethernet |
| •On board transformer | |
| PoE | •Supports power by PoE module, 12V,30W |
| •4Pin WF2.0 | |
| 4G Module | •Support PCIe USB 4G module |
| •Default support EC20, CAT1 | |
| Key | •Support 6key from ADC |
| •One Power on/off key | |
| PWM | •1xPWM, one for MIPI and LVDS LCD, one for eDP LCD |
| •Support LVDS or MIPI backlight | |
| Others | •LED indicate for system and power |
| •WIFI+BT antenna connector, IPEX-I | |
| Power | •12V, 2A power supply, DC inner hole 2.0mm |
| •WF2.0, 6PIN and 4PIN power supply(same with DC jack) | |
| •RTC battery, CR2032(Default NC) | |
| •Can't support Li-on battery, SoM board support only | |
| OS | •Android 13 GO OS |
| • Kernel Version: 5.15 | |
| • Linux SDK | |
| • Ubuntu 18.04.6 LTS Desktop;Ubuntu server | |
| L*W*H | 186*105*15mm |
