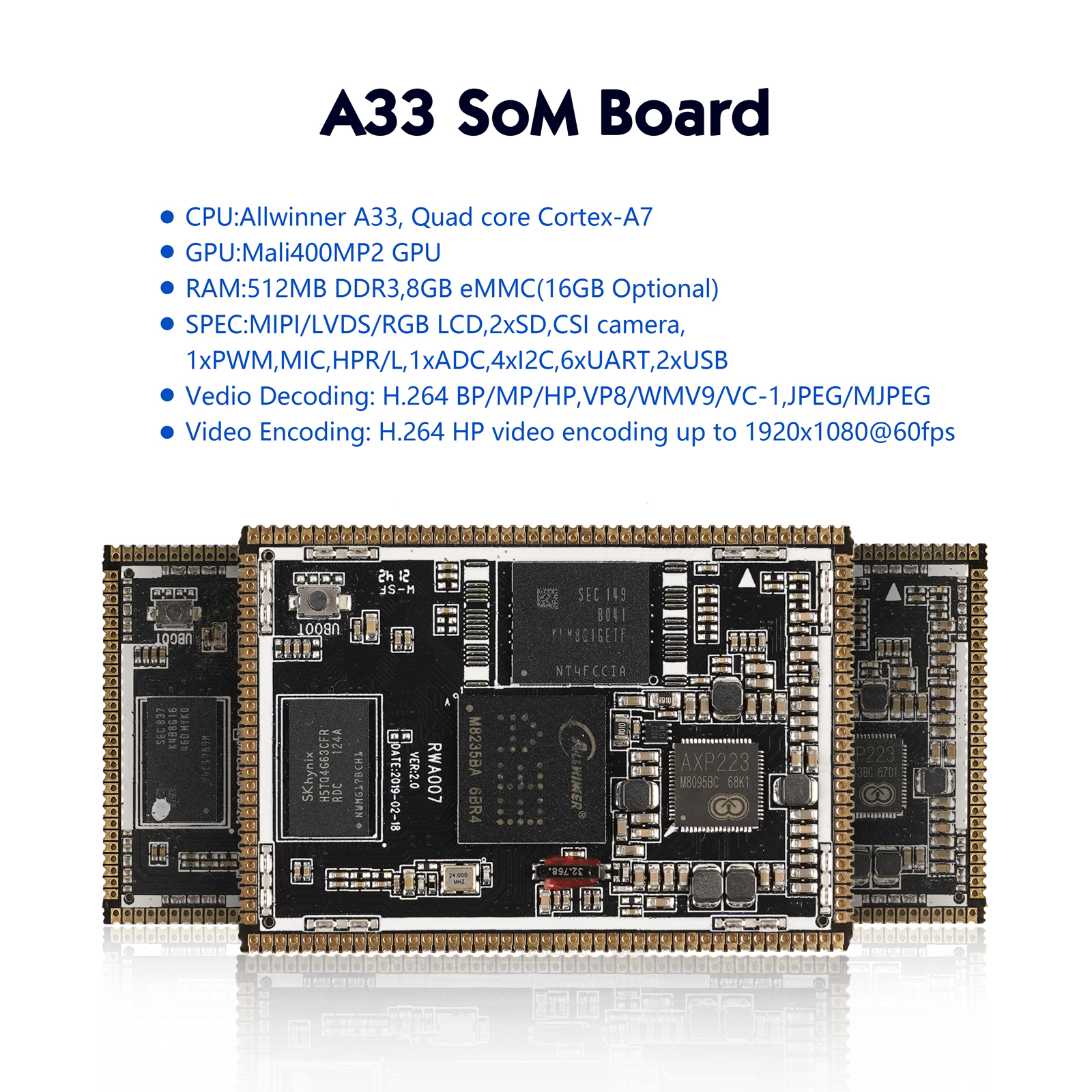

| Product Description | |
| CPU | •Allwinner A33, Cortex A7@1.2GHz |
| •ARMv7 ISA standard instruction set plus Thumb-2 and Jazeller RCT | |
| •Support 256KB L1 cache and shared 512KB L2 cache | |
| GPU | •Mali400MP2 GPU |
| •Support OpenGL ES2.0/OpenVG 1.1 standard | |
| ROM | •Support 64 bit ECC per 512 or 1024 bytes |
| •Support 8bit data bus width,support 2GB/4GB/8GB/16GB/32GB | |
| •Support boot from Nand Flash | |
| RAM | •Support DD3/DDR3L/LPDDR3 |
| •Support 12bits data bus width | |
| •Support dynamic frequency range, max 1GB DDR3 | |
| Video Decoding | •Support H.264 H.263 1080p 60fps |
| •Support video playback up to 1920x1080p 60fps | |
| Video Encoding | •Support H.264 HP video encoding up to 1080p 60fps |
| •Support JPEG baseline: picture size up to 4080x4080 | |
| Camera | •Support one CMOS camera |
| CSI0 1080p@30fps | |
| •Support BT656 | |
| •Support 8bit YUV422,8bit BT656 | |
| Display | •Support CPU/RGB/LVDS 1280*800 LCD |
| •Support 1/2/4-lane MIPI DSI 1280*800 LCD | |
| •Support RGB666 | |
| Touch panel | •Support I2C capacitive touch |
| •Support resistive touch by extended IC. | |
| Audio | •Two I2S/PCM |
| •Support I2S two input and output | |
| •One headphone out, one micphone input | |
| SD/MMC | •Support SD V2.0, eMMC V4.41 |
| •Support SDIO V2.0, Support 4/8 bit bus width | |
| •Support 3*independent SMHC controller | |
| USB | •Total 2xUSB, 1xUSB 2.0 OTG, 1xUSB host |
| •Support high speed 480-Mbps, full speed12-Mbps, low speed 1.5Mbps | |
| SPI | •Max 2*independent SPI controller |
| •Master/Slave can be switch | |
| TWI | •Max 4*TWI |
| •Support fast mode(400Kbps) | |
| UART | •Max 6* UART |
| •Uart0 for debug | |
| •Speed up to 3MHz | |
| LRADC | •One ADC,6 bit resolution, one ADC max support 7 key |
| •Voltage range is 0V-2V | |
| PWM | •2* PWM output |
| • Pre-scale 1 to 16 adjustable | |
| Security | •Support AES, DES, 3DES |
| •Support ECB/CBC/CTR modes for AES/DES/3DES | |
| •Support AES 128-bits,192-bits and 256-bits | |
| PMU | •Support 2.9V-6.3V voltage input |
| •Onboard AXP223 PMU IC, QFP68 | |
| •Support 5* DCDC, DC-DC1 1.6-3.4V@1.4Aadjustable;DC-DC2 0.6-1.54V@2Aadjustable;DC-DC3 0.6-1.86V@2Aadjustable;DC-DC4 0.6-1.54V@0.6Aadjustable;DC-DC5 1.0-2.55V@2Aadjustable; | |
| •Support 7*LDO, LDO1/2 0.7V-3.3V@300mA; | |
| LDO3 0.7-3.3V@200mA, DLOO2/DLDO3/ELDO2/ELDO3 0.7-3.3V@200mA;DLDO4 0.7-3.3V@100mA; | |
| •Support RTC battery,30mA | |
| •Max charging current to 2.1A | |
| •Support4.1V/4.2V/4.22V/4.24V battery | |
| •Support charging management, OCP, OVP | |
| OS | •Android 4.4 |
| L*W*H | 59*41*3.5mm |
