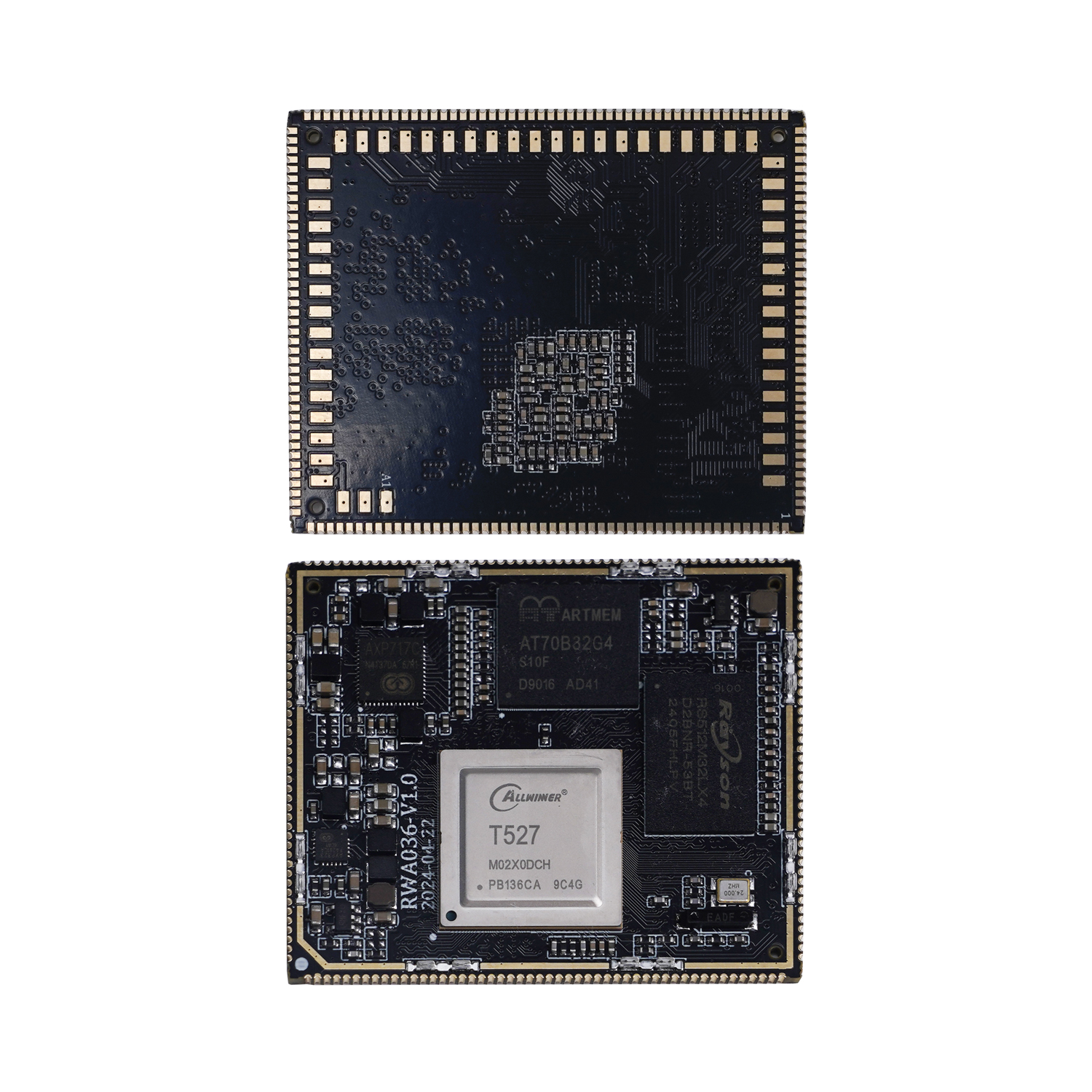

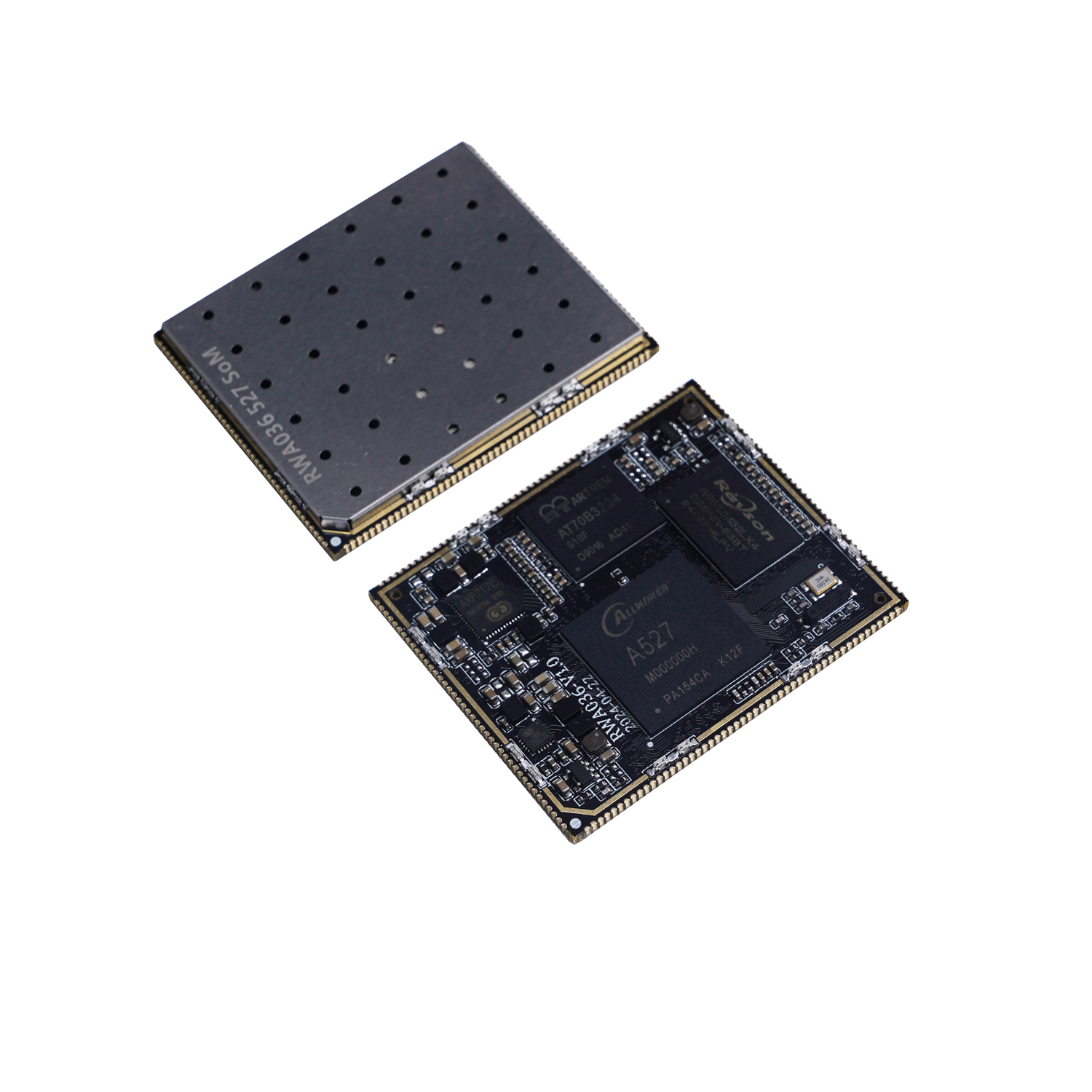

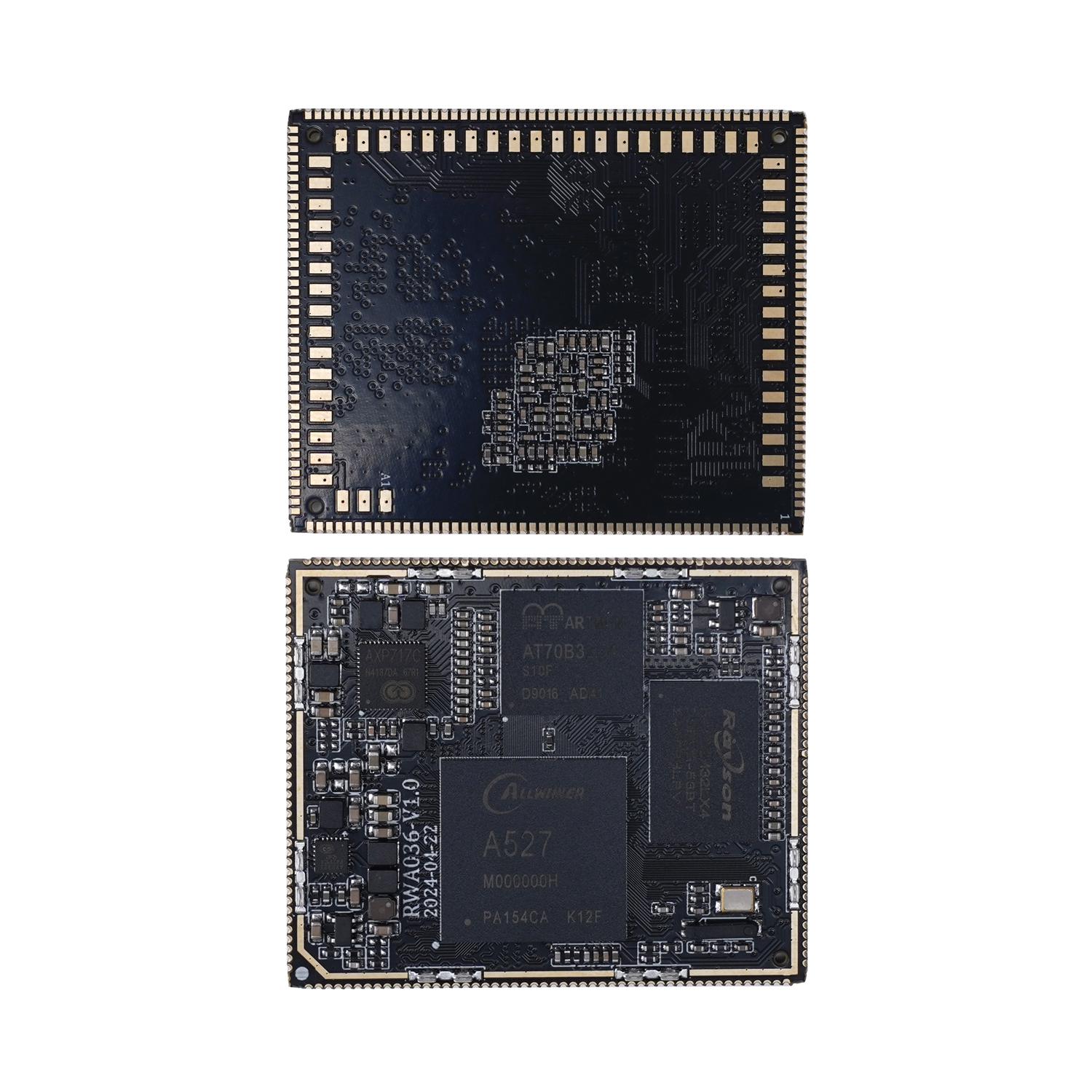

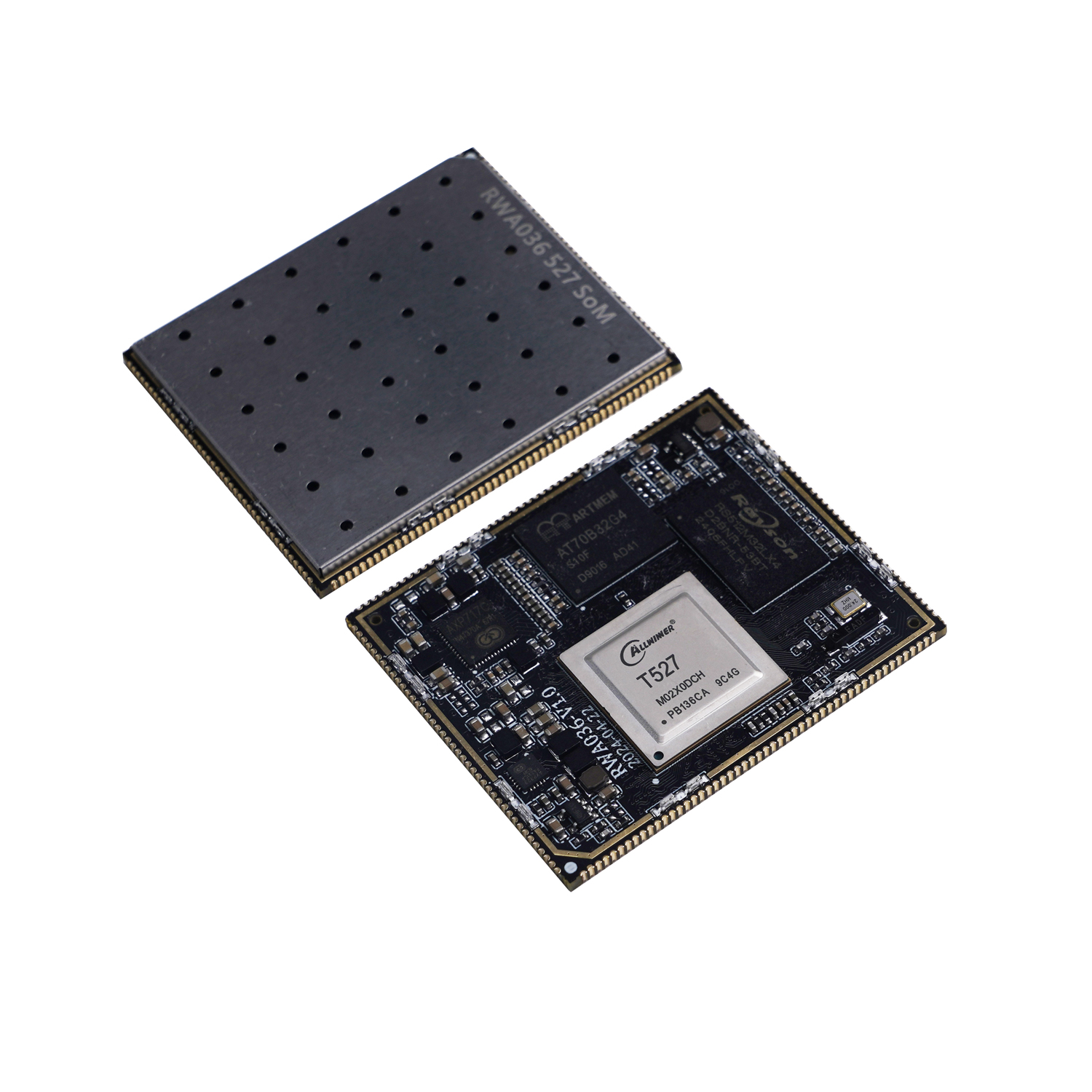

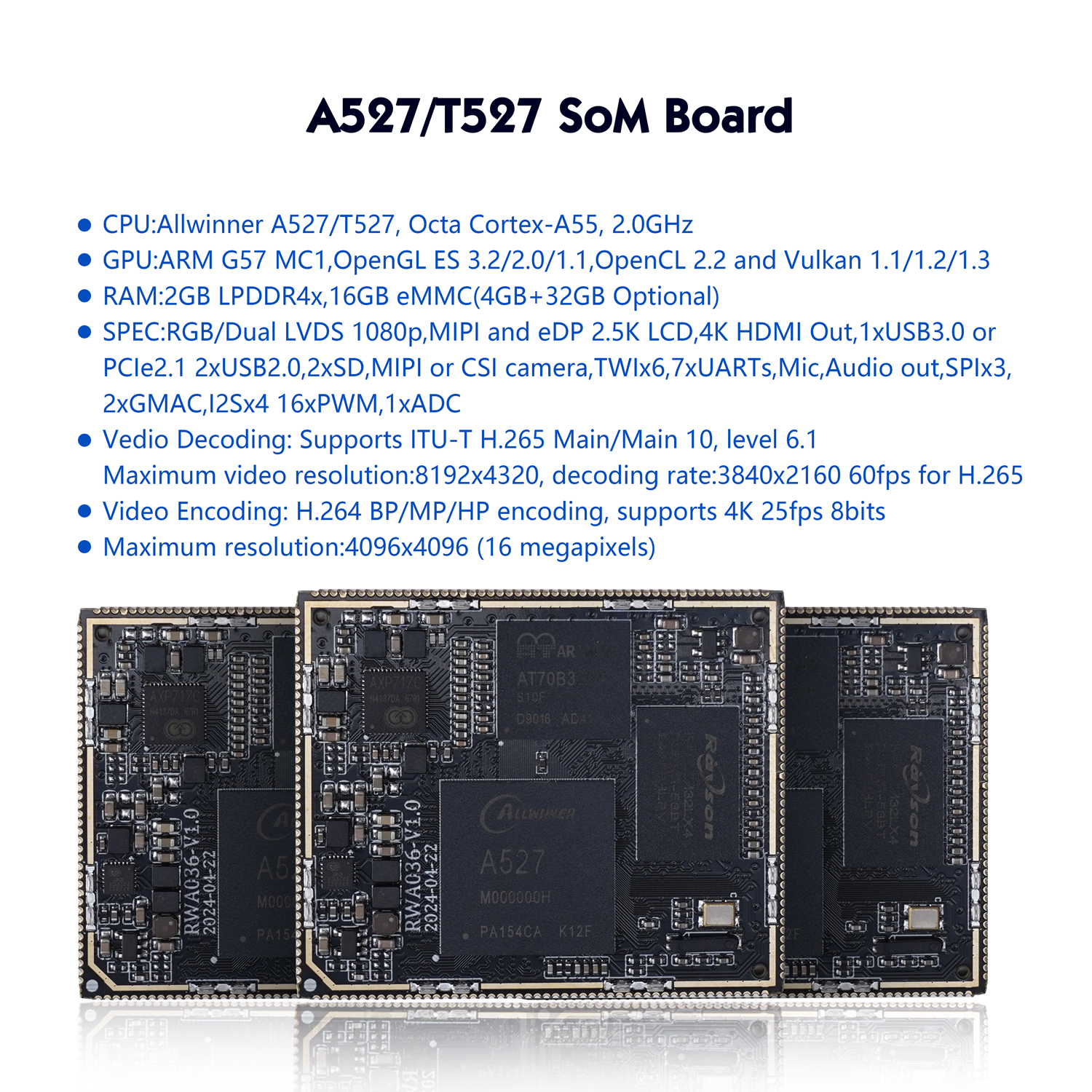

RWA036 527 SoM
CPU•Octa core ARM Cortex-A55, up to 2GHz•32 KB L1 I-cache and 32 KB L1 D-cache p...
Product Details
CPU•Octa core ARM Cortex-A55, up to 2GHz
•32 KB L1 I-cache and 32 KB L1 D-cache per A55 core
•Single-core RISC-V, up to 200MHz
NPU*•Only T527N have NPU
•Supports OpenGL ES 3.2/2.0/1.1, Vulkan 1.1/1.2/1.3, OpenCL 2.2
•Embedded 512KB internal buffer
GPU•ARM G57 MC1 GPU
•Supports OpenGL ES 3.2/2.0/1.1, Vulkan 1.1/1.2/1.3, OpenCL 2.2
•Anti-aliasing algorithm
•High memory bandwith and low power cunsumption in 3D graphics processing
ROM•Support 8bit data bus, Support 8GB/16GB/32GB, max 128GB
•eMMC V5.1
•Support boot from eMMC
RAM•Support one LPDDR4 and LPDDR4x
•Support 32-bit databus, default 2GB, max 4GB
•Clock frequency up to 1200MHz for LPDDR4x
Video Decoding•Supports ITU-T H.265 Main/Main 10, level 6.1
•Maximum video resolution:8192x4320, decoding rate:3840x2160 60fps
•Supports VP9 Profile0/Profile2, level 6.1
•Maximum video resolution:8192x4320, decoding rate:3840x2160 60fps
•Supports ITU-T H.264 Base/Main/High Profile level 4.2
•Maximum video resolution:3840x2160, maximum decoding rate: 3840x2160 30fps
Video Encoding•H.264 BP/MP/HP encoding, supports 4K 25fps 8bits
•Maximum resolution:4096x4096 (16 megapixels)
•Supports I/P frame type, supports CBR, VBR and FIXEDQP modes
•Supports JPEG baseline encoding, JPEG encoder supports 4K 15fps
•JPEG encoder support YUV420, YUV422 and YUV 444 format
•MJPEG baseline encoding up to 4K 15fps
Vedio Input•Supports one individual ISP, with maximum resolution of 3264x4224
•Maximum frame rate of 8M 30fps 2F-WDR
•Supports WDR spilt, 2D/3D noise reduction, bayer interpolation, sharpen, white balance and color enchancement
•8M 30fps ARW12 2F-WDR, size up to 3264(H)x2448(V)
•2+2-lane MIPI interface
•Parallel CSI, supports 8-bit width width
Audio input/output•Two audio DAC channels, 16 bit and 20 bit sample resolution
•Supports one stero headphone out HPOUTL/R
•One microphone inputs MICIN1P/1N
•Four I2S/PCM external interfaces (I2S0, I2S1, I2S2, I2S3) for connecting external power amplifer and MIC ADC
•Compliant with standard Philips Inter-IC sournd (I2S) bus specification
•Supports multiple function clocks, supports TX/RX DMA slave interface
Display•Supports RGB interface with DE/SYNC mode, up to 1920x1080 60fps
•Supports serial RGB/dummy RGB interface, up to 800x480 60fps
•Supports dual LVDS, up to 1920x1080 60fps, single LVDS 1366x768 60fps
•Supports 4-lane MIPI DSI, up to 1280x720 60fps, 1920x1200 60fps
•Supports 4+4-lane MIPI DSI, up to 2560x1600 60fps
•Supports eDP1.3, up to 2.5K 60fps, 1-lane, 2-lane or 4-lane, up to 2.7Gbit/s per lane
•T527 supports 4K 30fps
Touch Panel•Supports I2C or USB capacitive touch panel
•Supports I2C resistive touch panel by external IC
HDMI Out•One HDMI 2.0 TX interface, supporting HDCP1.4
•Supports 3840x2160, 1920x1080 and 1280x720 resolution
SD/MMC •Support SD V3.0, SDIO 3.0
•Support MMC 4.51
•Support 1-bit or 4-bit data bus
PCIe•Supports one PCIe 2.1
•Supports Gen1(2.5 Gbit/s), Gen2 (5.0 Gbit/s) speed
•Support 62.5MHz/125MHz operation on PIPE interface for Gen2/GEN2
USB•Total 3xUSB,two USB 2.0+one USB3.0; or 3xUSB2.0
•Two USB2.0(USB0), HS 480 Mbit/s, FS 12Mbit/s, LS 1.5Mbit/s
•One USB3.1, compliant with USB3.1 GEN1 specification(Reuse on the PICe)
•USB 2.0 UTMI+PHY(USB2), USB3.1 PIPE PHY(USB3)
•Super-speed 5Gbit/s for USB3.1 PHY, HS FS LS for USB2.0
SPI•Up to 3 SPI controllers
•Supports multiple SPI modes
•Supports STR mode and DTR mode, and DTR mode supports DQS signal
•High speed clock frequency, 150MHz for STR mode, 100MHz for DTR mode
•Programmable delay between transactions
•Supports control signal configuration
TWI•Up to 6 TWI controllers, compliant with I2C bus standard
•7-bit and 10-bit device addressing modes
•Standard mode (up to 100Kbit/s) and fast mode (up to 400 Kbit/s)
•Supports general call and start byte
•Slave mode supports interrupt on address detection
UART•Up to 7 uart controllers, compatible with industry-standard 16450/16550 UARTs
•Uart0 used for debug, Each of them is 128 bytes for UART1, UART2, UART3, UART4, UART5, UART6, and UART7
•Embedded two 64-byte FIFO for TX and RX operation respectively
•Supports TX/RX DMA salve controller interface
EMAC•Two GMAC interface for connection external Ethernet PHY
•10/100/1000 Mbit/s Ethernet port with RGMII and RMII interfaces
•Supports both full-duplex and half-duplex operations
•Compliant with IEEE 802.3-2002 standard
•Supports a variety of flexible address filtering modes
LRADC•1 channel LRADC input, 6-bit resolution
•Supports hold key and general key
•Supports normal, continue and single work mode
PWM•16 independent PWM channels for PWM controller
•Supports PWM continuous mode output
•Supports PWM pluse mode output and the pulse number is configurable
Security•Supports AES symmetrical algorithm
•Key size: 128/192/256 bits, CFB mode includes: CFB1, CFB8, CFB64, CFB128
•CTR mode includes:CTR16,CTR32, CTR 64 and CTR128
•Supports ECB, CBC, CTS, OFB, CBC-MAC and GCM modes
•Supports DES symmetrical algorithm,CTR mode, includes: CTR16, CTR32, CTR64
•Supports ECB, CBC and CBC-MAC mode
•Supports 3DES, Hash algorithms, Randon bit generator algorithms
Others•External connect a 32.768 kHz low-frequency oscillator for ount clock
•Watchdog timer, supports 12 initial values
•Two CIR_RX interfaces, full physical layer implementation, support NEC format infra data
•Configurable LED output high/low level width, configurable LED reset time
PMU•On board AXP717C PMU, QFN68
•Support 3.9V-5.5V input, VCC-5V power input max 5V 3A
•Support 7xLDOs from PMU,voltage range 0.5V-3.5V,ALDO1 300mA(AXP323); ALDO1 400mA;ALDO2, 500mA; BLDO4 400mA; ALDO3 200mA(3.3V);CLDO3 500mA(3.3V); CLDO4 500mA; BLDO4 400mA; BLDO3 500mA
•Supports single cell battery with charge and discharge management
OS•Defaut Android 13 OS
•Kernel Version: 5.15
•Tina SDK
•Ubuntu 18.04.6 LTS and server
L*W*H40*48*3.7mm
