| Product Description | |

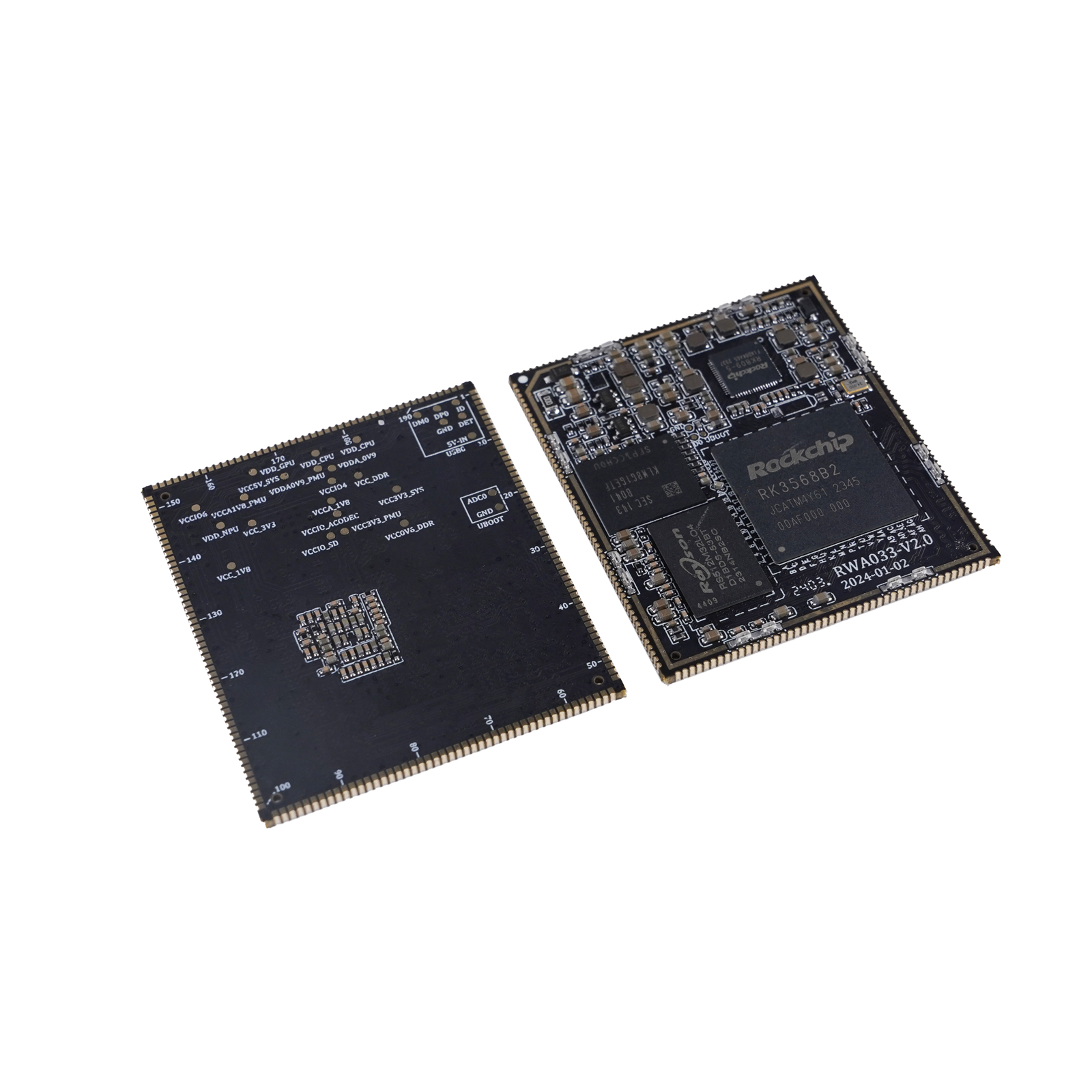

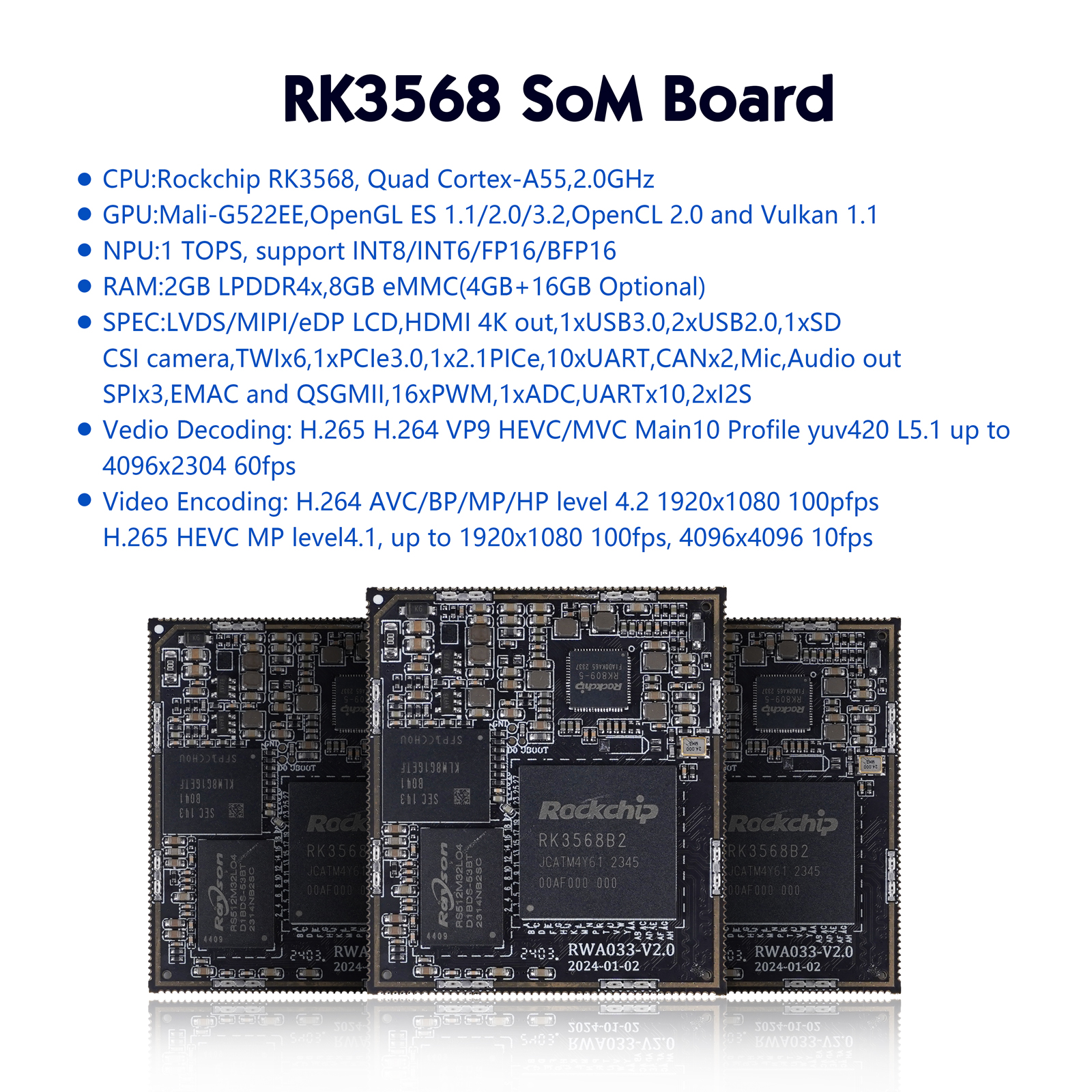

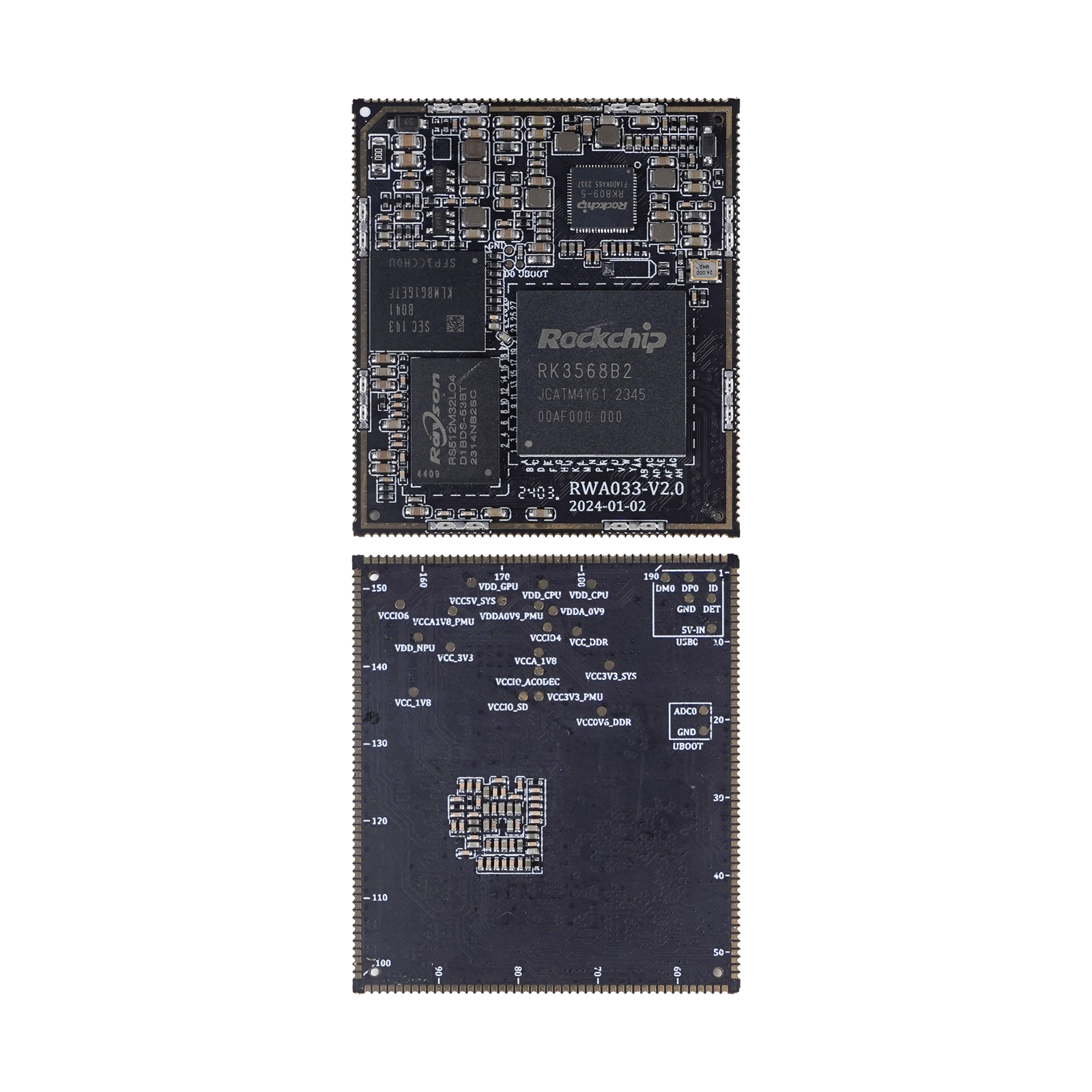

| CPU | •Rockchip RK3568, Quad cortex A55@2GHz |
| •32 KB L1 Instruction cache and 32 KB L1 data cache for per CPU,512KB L3 with ECC | |
| •ARMv8 Cryptography Extensions | |
| GPU | •Mali G52-2EE 3D GPU |
| •Support OpenGL ES 1.1/2.0/3.2 | |
| •Support OpenCL 2.0 and Vulkan 1.1. | |
| NPU | •1TOPS NPU |
| • Supports INT8/INT16/FP16/BFP16 hybrid operation | |
| •Network models based on a series of frameworks such as | |
| TensorFlow/MXNet/PyTorch/Caffe can be easily converted | |
| ROM | •Support 8bit data bus, Support 8GB/16GB/32GB |
| •eMMC V5.1 | |
| •Support boot from eMMC | |
| •Support three SATA port, two used on USB 3.0, one used on PCIe 2.0 | |
| •Compliant with Serial ATA 3.3 and AHCI Revision 1.3.1 | |
| •Support eSATA, support 1.5Gb/s, 3.0Gb/s, 6.0Gb/s | |
| RAM | •Support one LPDDR4 or LPDDR4x |
| •Support 32bit databus, default 2GB, max 4GB | |
| •Support 8bits ECC | |
| Video Decoding | •SupportH.264 and H.265 decoding |
| • H.265 H.264 VP9 HEVC/MVC Main10 Profile yuv420 L5.1 up to 4096x2304 60fps | |
| • VP8 V2.0,MPEG-4 and VC1 up to 1920x1080 60fps | |
| Video Encoding | •Support H.264 AVC/BP/MP/HP level 4.2 1920x1080 100pfps |
| •H.265 HEVC MP level4.1, up to 1920x1080 100fps, 4096x4096 10fps | |
| •H.264 encoding performance of 1080p 60fps | |
| •Support YUV/RGB video source with rotation and mirror | |
| SD/MMC | •Support SD V3.0 |
| •Support MMC 4.51 | |
| •Support 4bit data bus | |
| Vedio Input | •Support up to 16bit DVP interface(digital parallel input) |
| •Support 8bits/10bits/12bits/16bits input, up to 150MHz input data | |
| •Support MIPI CSI RX interface, compatible with V1.2 MIPI Alliance | |
| •Up to 4 data lanes, 2.5Gbps max per lane | |
| •Built in ISP, DVP input: ITU-R BT601/656/1120 with raw8/raw10/rwa12/raw16, YUV422 | |
| •MIPI input: RX data lane x1/x2/x4, raw8/raw10,raw12,YUV422 | |
| •3A: include AE/Histogram,AF,AWB statistics output | |
| •FPN:Fixed pattern noise removal | |
| •Max resolution is 4096x2304 | |
| Audio | • Support 3 channels digital ADC |
| •Support 2 channels digital DAC | |
| •Support one MIC input | |
| •Support one L&R output | |
| Display | •Support single or dual channel LVDS |
| •Support single MIPI DSI, up to 1920x1080 60fps | |
| •Support HDMI TX, up to 1080P 120Hz, 4096x2304 60Hz, HDCP1.4/2.2 | |
| •Support one 4 lanes eDP 1.3 interface, up to 2560x1600 60Hz | |
| Touch Panel | •Support I2C or USB capacitive touch panel |
| •Support I2C resistive touch panel | |
| HDMI Out | •Support HDMI TX, up to 1080P 120Hz, 4096x2304 60Hz, HDCP1.4/2.2 |
| Single Physical Layer PHY with support for HDM1.4 and HDM2.0 operation | |
| Up to 10 bits Deep color modes | |
| PCIe | •Support two lane PCIe 3.1, 2.5Gbps, 5.0Gbps and 8.0 Gbps per lane |
| •Support one lane PCIe 2.1 | |
| •PCIe 3.1 and PCIe 2.1 compatible with PCIe1.1 protocol | |
| USB | •Total 4xUSB. 2xUSB 3.0 |
| •One USB 3.0 OTG, one USB3.0 Host. USB3.0 up to 8.48Gbps bandwith | |
| •2xUSB2.0 host | |
| •Support US2.0 HS FS LS mode | |
| SPI | •Three independent SPI controller |
| •Master and slave configurable | |
| TWI | •6xTWIs, Support 7bits and 10bits address mode |
| •Support fast speed mode(Max 400Kbps) | |
| UART | •Support 10xUARTs |
| •Uart2 used for debug | |
| •Embedded two 64-byte FIFO for TX and RX operation respectively | |
| •Support auto flow control mode for UART0/UART1/UART3/UART4/UART5 | |
| EMAC | •Support one RMII/RGMII PHY interface |
| •Support 10/100/1000 Mbps data transfer rate with the RGMII | |
| •Support 10/100 Mbps data transfer rates with the RMII | |
| •Compliant with IEEE 802.31Q VLAN tag detection for reception frames | |
| •Support one QSGMII interface, only two GMII controller | |
| •Support SGMII mode with 1000Mbps | |
| •SGMII Controller pin used on USB3.0, SATA,PCIe | |
| LRADC | •1xADC,10 bits resolution |
| •Up to 1MS/s sampling rate, 8 single-ended input channels | |
| PWM | •11xPWMs with interrupt-based operation |
| •Support cpature mode | |
| •Optimized for IR application for PWM3,PMM7,PWM11 | |
| Security | •Support TrustZone technology |
| •Support Cipher engine SHA-1,SHA-256/224,SHA-512/384,MD5 with hardware padding | |
| •Support HMACof SHA-1, AES-128,AES-192,AES-256 encrypt and decrypt cipher | |
| •Support DES and TDES cipher | |
| •Support AES ECB/CBC/OFB/CFB/CTR/CTS/XTS/CCM/GCM/CBC-MAC/CMAC mode | |
| Others | •Support ISO-7816 smart card |
| •Support multiple group of GPIO, all of GPIOs can be used to generate interrupt to CPU | |
| •Support temperature sensor | |
| Power | •Support 2.7V-5.5V input |
| •On board RK809-5 PMU, QFN68 | |
| •Support 1xLDO from PMU,buck5 1.5V~3.6V, 2.5 A max, fast transient response, default 1.8V; | |
| •Support 1xDCDC from SoM Board driver by ETA3409, default3.3V. | |
| •Support 5V power input max 2.5A | |
| •Can not support Li-On battery | |
| OS | •Defaut Android 11 OS, Linux SDK |
| •Kernel Version: 4.19 | |

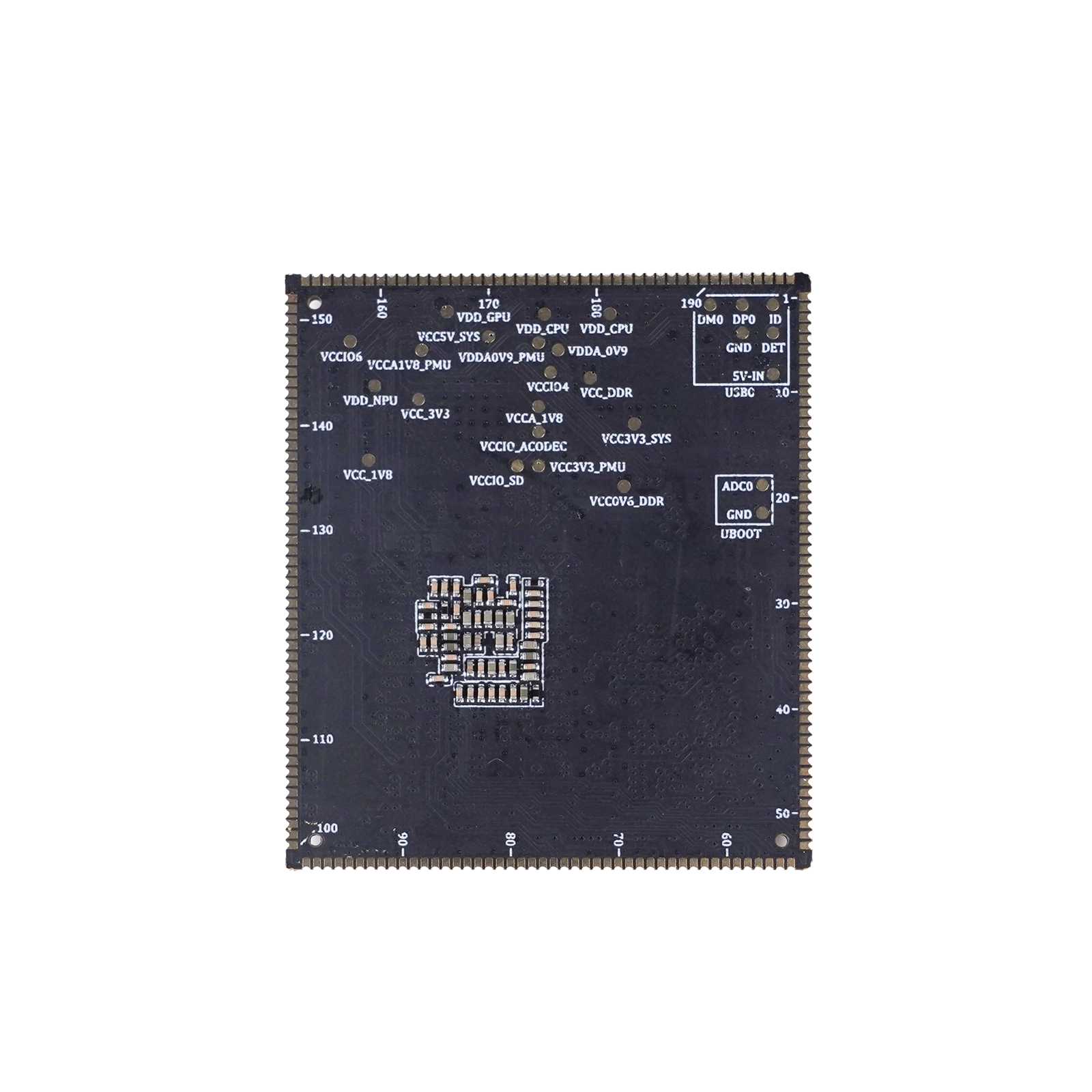

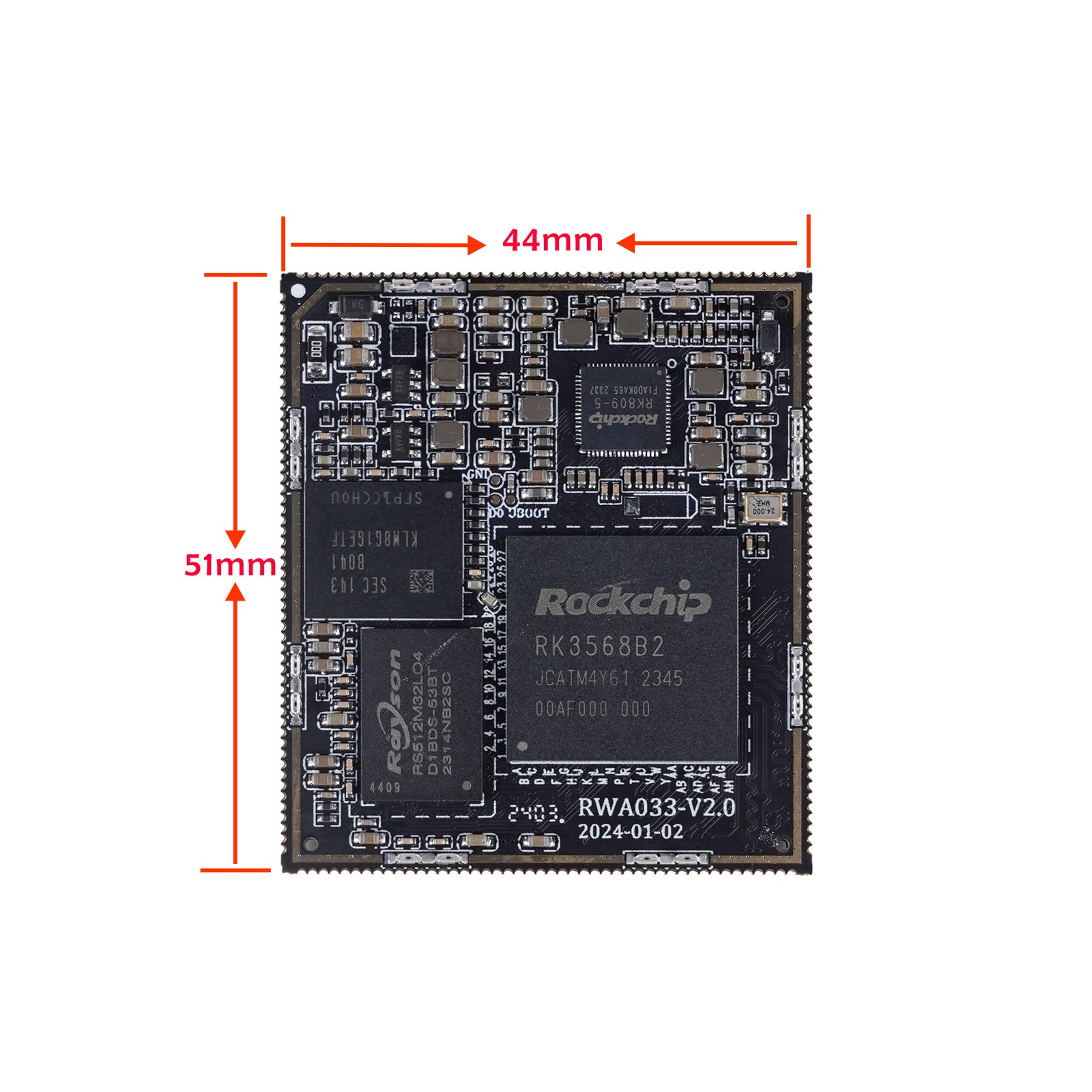

| L*W*H | 51*44*3.7mm |
