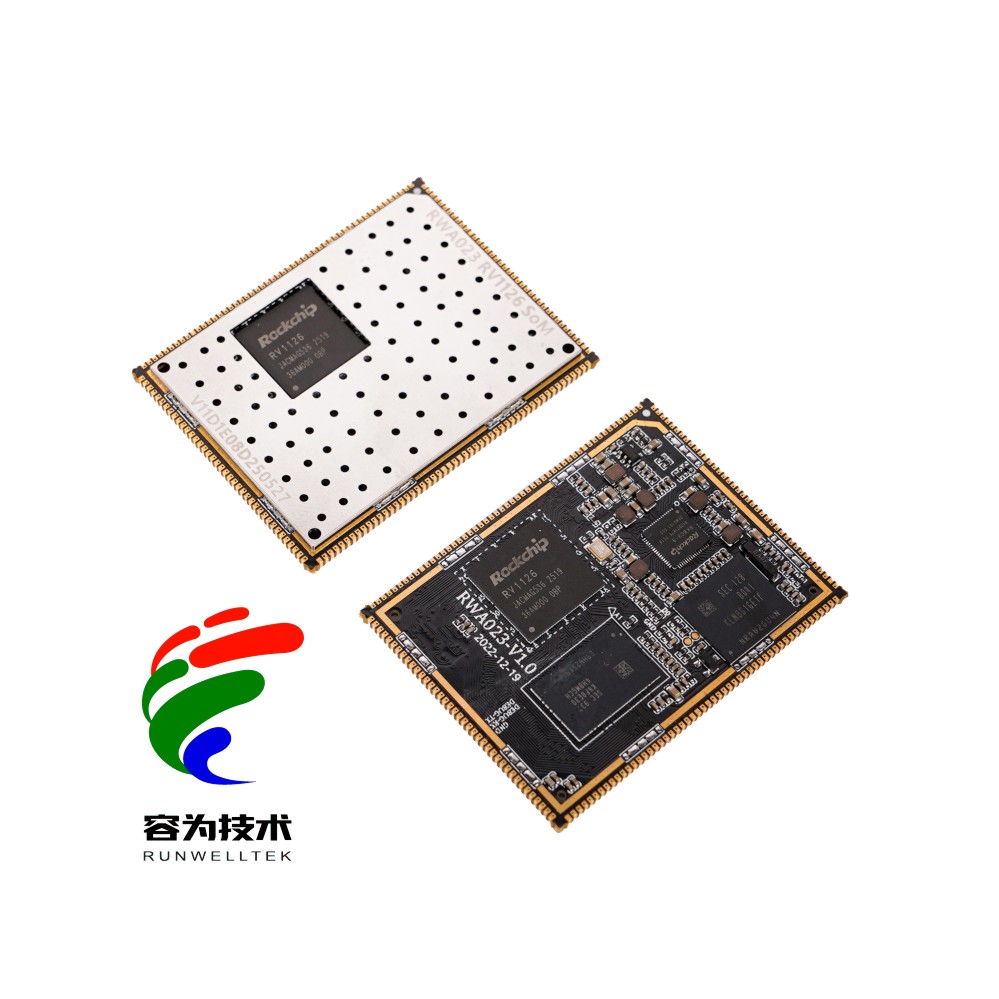

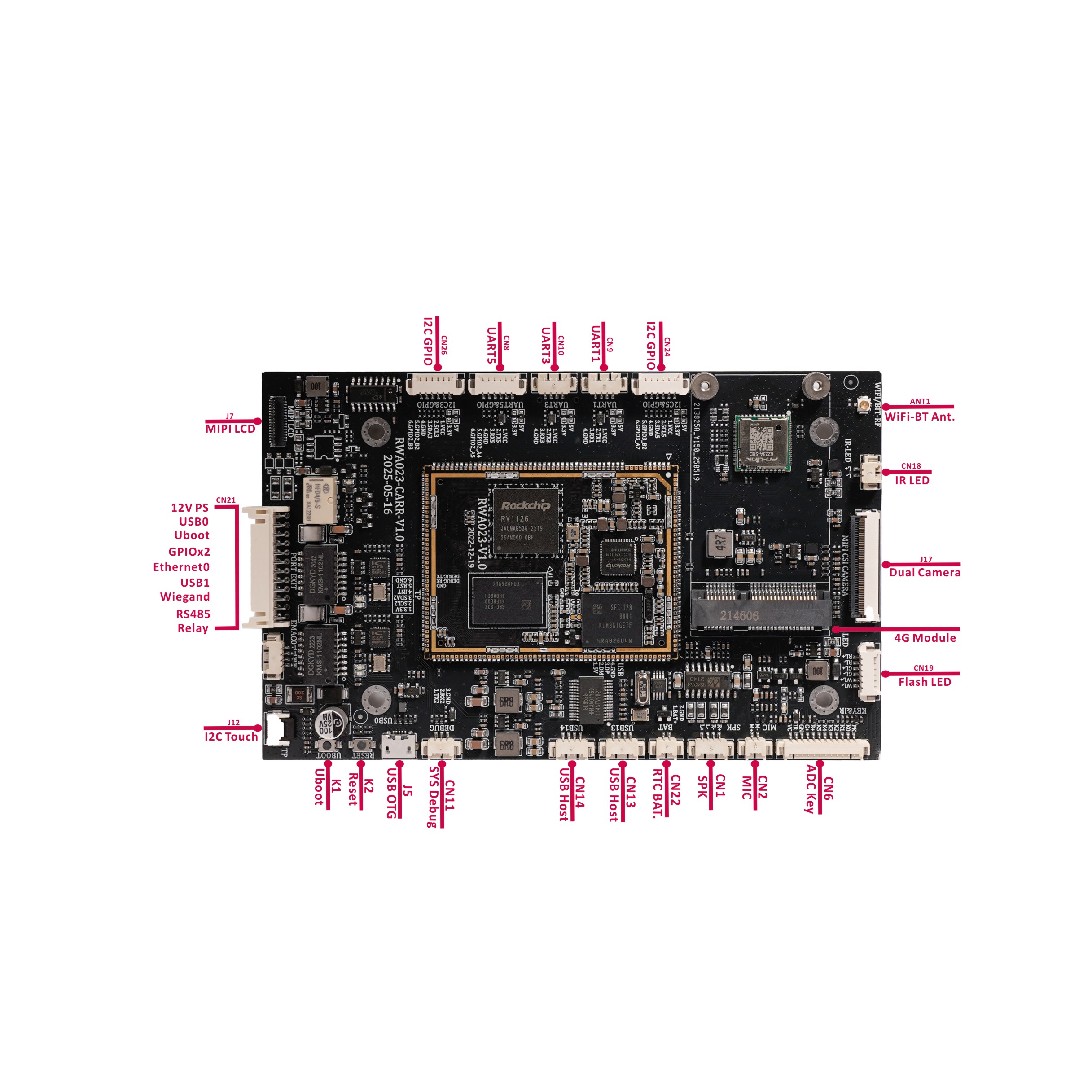

| RWA023 RV1126B-P SoM | |
|
|
| Product Description | |
| CPU | •Rockchip RV1126B-P, Quad Cortex A53@1.5GHz |
| •32KB I-cache and 32KB D-cache for each core and 512KB unified L2 cache | |
| •RISC-V MCU | |
| NPU | •3.0 TOPS |
| •Supportinteger 8, integer 16 convolution operation | |
| •Support TensorFlow/MXNet/PyTorch/Caffe | |
| ROM | •Support 8bit data bus, Support4GB/8GB/16GB/32GB |
| •eMMC V4.51 | |
| •Support boot from eMMC | |
| RAM | •Support LPDDR4x |
| •Support 32bit databus, default 1GB, max 4GB | |
| •Support dynamic frequency range | |
| Video Decoding | •Support H.264 and H.265 decoding |
| •H.265 HEVC/MVC Main Profile yuv420@5.0, max 3840x2160@30fps;H.264 AVC/MVC Main Profile yuv400/yuv420/yuv422@L5.1, max 3840x2160@30fps | |
| Video Encoding | •Support H.265 and H.264 encoding |
| •Support H.265 HEVC Main Profile, L5.0 High Tier,H.264 High Profile | |
| •Max 12M@30fps | |
| •Support common primary stream as 3048x2160@30fps,1920x1080@30fps | |
| •JPEG Decoder, support YUV400/YUV420/YUV422/YUV440/YUV411/YUV444 | |
| Camera | •Support two MIPI CSI/LVDS/SubLVDS, MIPI CSI max 2.5Gps/lane |
| •One 8/10/12/16bit standard DVP, Max 150MHZ input | |
| •Support BT.601 and BT.656 , BT.1120 VI | |
| •Built in ISP max 4416x3312 | |
| •ISP DVP input ITU-R BT.601/656/1120,raw8/10/12, YUV422 | |
| •ISP MIPI input RX data lane x1/2/4, raw8/10/12, YUV422 | |
| •HDR:3-/2-Frame Merge into High-Dynamic Range | |
| •TMO:3-/2-Frame Merge into High-Dynamic Range | |
| Display | •Support one RGB 24bit LCD |
| •Support one BT.1120 video output | |
| •Support one MIPI 4lane, 1Gbps/lane DSI LCD | |
| Touch Panel | •I2C touch panel |
| •Support I2C resistive touch panel | |
| Audio | •I2S0 with 8 channels, I2S1/I2S2 with 2 channels |
| •PDM and TDM 8 channels | |
| •Support 24bits ADC and DAC,Support Mic input | |
| •SupportClass D 1.3W speaker,Support 32ohm Class-AB PA driver the headphone | |
| •One L&R audio output, one microphone | |
| SD/MMC | •Support SD V3.0,support SDIO 3.0 |
| •Support 4/8 bit data bus | |
| USB | •Total 2xUSB, 1xUSB 2.0 OTG,1xUSB host |
| •Support high speed 480-Mbps, full speed 12-Mbps, low speed 1.5Mbps | |
| SPI | •Two independent SPI controller |
| •Master and slave configurable | |
| TWI | •6 TWIs, Support 7bits and 10bits address mode |
| •Support fast speed mode(Max 100Kbps) | |
| UART | •6xUARTs |
| •Uart2 used for debug | |
| •Support 5bit, 6bit, 7bit, 8bit serial data transmit or receive | |
| GMA | •GMAC 10/100/1000M ethernet controller |
| LRADC | •6xADC, 10bit resolution |
| •Max 1MS/s sampling frequency | |
| PWM | •12xPWM ,0-11 |
| • PWM3, PWM7 and PWM11 can be used for IR | |
| Security | •Support SM2, SM3, SM4 security |
| •SupportSHA-1,SHA-256/224,SHA-512/384,MD5 | |
| •SupportAES 128-bits,AES-256 | |
| Power | •Support 2.7V-5.5V input |
| •On board RK809-2 PMU, QFN68 | |
| •Support 5xDCDC, DC-DC1 0.5-2.4V@2.4A adjustable;DC-DC2 0.5-2.4V@2.5A adjustable;DC-DC3 0.5-2.4V@1.5A adjustable;DC-DC4 0.5-3.4V@1.5A adjustable;DC-DC5 1.5-3.6V@2.5A adjustable; | |
| •Support 9xLDOs, LDO1-LDO2,LDO4-LDO9 0.6V-.34V@400mA;LDO3 0.6V-3.4V@400mA; | |
| OS | •Linux 6.1 SDK, Buildroot+QT5.12 |

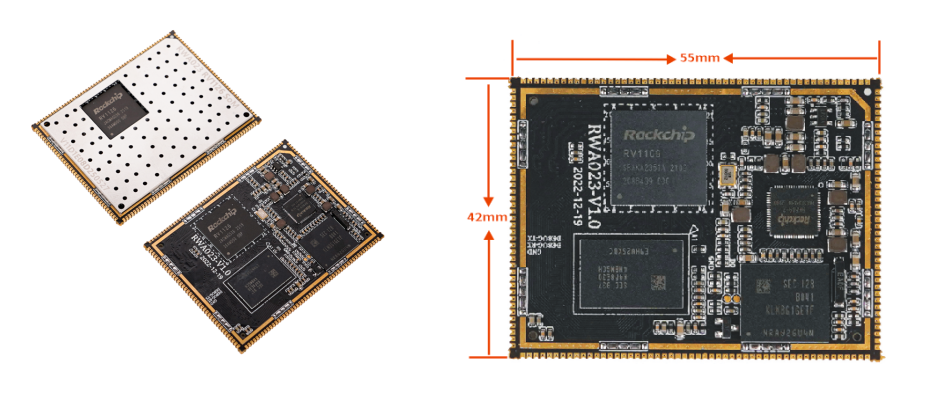

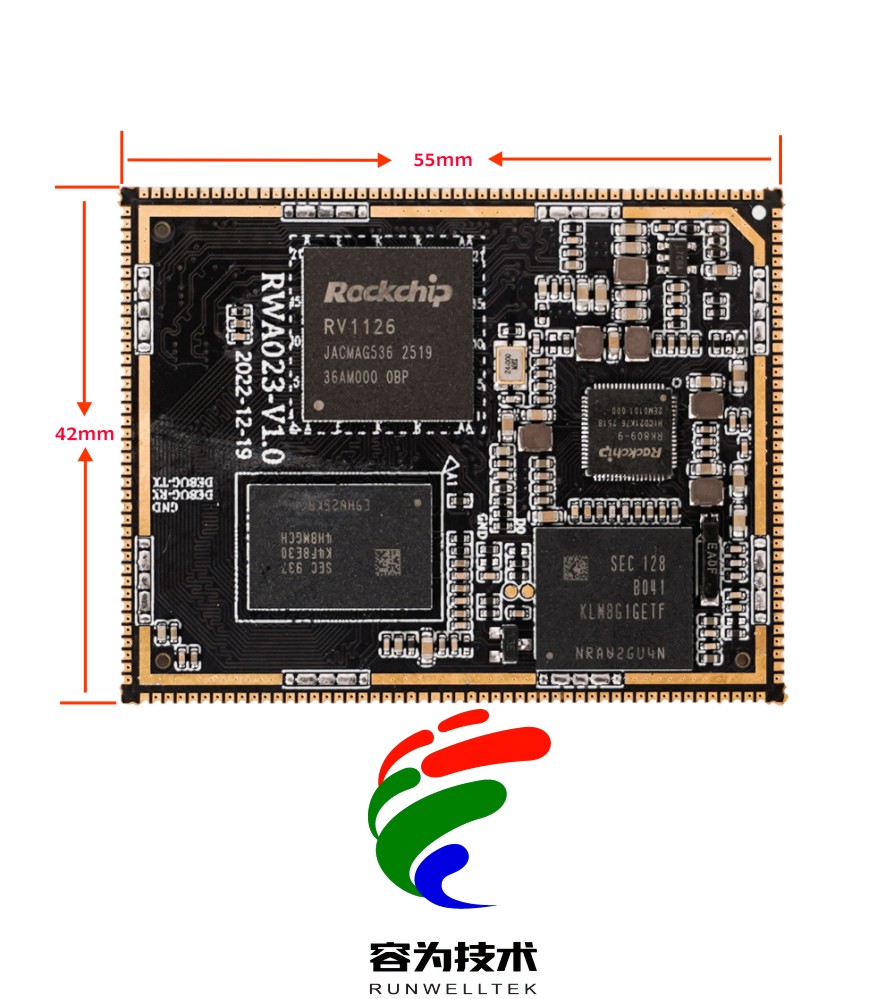

| L*W*H | 42*55*3.7mm |
